A flight rule is a compact piece of operational authority. It says what the team does when a condition occurs. That makes LLMs tempting: give the model telemetry, anomaly notes, and operator context, and ask it to draft a rule.
The boundary is the dangerous part. A model can write a proposed flight rule. It cannot become the flight rule.
I tested that boundary with a small local harness. No API call was needed. I treated four JSON objects as if they were candidate rules drafted by a model, then passed them through a schema checker, a policy checker, and a tiny simulator.
The script is in:
res/llm_flight_rule_validator_demo.py
I ran it with:
MPLCONFIGDIR=/tmp/mplconfig \
conda run -n exohunter python res/llm_flight_rule_validator_demo.py \
--plot uploads/2026/06/llm-flight-rule-validator.png \
--json /tmp/llm-flight-rule-validator.json
The result was useful because three plausible-looking rules failed for different reasons.
The anomaly
The simulated telemetry is a small CubeSat-like case: battery state of charge is falling, the payload is still enabled, there is no downlink window, and the onboard computer temperature is rising.
minute battery_soc temp_obc_c downlink_window payload_enabled
0 31 39 false true
10 27 40 false true
20 23 42 false true
30 20 43 false true
40 17 44 false true
50 14 45 false true
The policy I used was simple: if the battery drops below 22% while the payload is on, a good rule needs to reduce payload power before the spacecraft reaches the 15% safe-mode margin.
That is not a full spacecraft power model. It is enough to test the difference between a rule that sounds reasonable and a rule that changes the outcome.
The rule format
The candidate rule format is deliberately strict:
{
"name": "disable_payload_low_battery",
"state": "draft",
"condition": {
"field": "battery_soc",
"operator": "<",
"value": 22
},
"action": "disable_payload",
"requires_human_go": true,
"rationale": "Payload load should be removed before battery state reaches safe-mode margin."
}
The allowed actions are fixed:
ALLOWED_ACTIONS = {
"enter_safe_mode",
"disable_payload",
"request_downlink",
"defer_operation",
"notify_operator",
}
This is the first boundary. The model can propose text, but the system accepts only known actions. turn_off_payload may be clear to a human, but it is not a valid command in this interface.
Validation before simulation
The validator checks the rule shape, allowed telemetry fields, allowed operators, allowed actions, and the human authorization gate:
def validate_rule(rule):
required = {"name", "condition", "action", "requires_human_go", "rationale"}
missing = sorted(required - set(rule))
if missing:
return False, f"missing required fields: {', '.join(missing)}"
condition = rule["condition"]
for field in ("field", "operator", "value"):
if field not in condition:
return False, f"condition missing {field}"
if condition["field"] not in ALLOWED_FIELDS:
return False, f"unknown telemetry field: {condition['field']}"
if condition["operator"] not in ALLOWED_OPERATORS:
return False, f"unsupported operator: {condition['operator']}"
if rule["action"] not in ALLOWED_ACTIONS:
return False, f"unknown action: {rule['action']}"
if rule.get("requires_human_go") is not True:
return False, "missing human authorization gate"
return True, "schema and policy checks passed"
That catches two failure modes immediately:
turn_off_payload_low_battery -> rejected
reason: unknown action: turn_off_payload
disable_payload_without_go -> rejected
reason: missing human authorization gate
Both are believable LLM mistakes. One uses a phrase that sounds right but is not part of the command vocabulary. The other quietly removes the operator gate.
Simulation catches the subtler failure
One rule passed schema validation but still failed:
{
"name": "notify_operator_low_battery",
"condition": {
"field": "battery_soc",
"operator": "<",
"value": 22
},
"action": "notify_operator",
"requires_human_go": true
}
It is syntactically valid. It has a human authorization gate. It fires at the right threshold. It still does not reduce payload power.
The simulator applies each candidate rule to the telemetry:
def simulate_rule(rule, telemetry):
fire_minute = None
for sample in telemetry:
if eval_condition(rule, sample):
fire_minute = sample.minute
break
if fire_minute is None:
return False, "rule never fired during the anomaly", None
if rule["action"] == "disable_payload" and fire_minute <= 30:
return True, f"payload would be disabled at t={fire_minute} min", fire_minute
if rule["action"] in {"notify_operator", "request_downlink", "defer_operation"}:
return False, f"{rule['action']} does not reduce payload power", fire_minute
The simulator rejected the notification rule:
notify_operator_low_battery
schema_valid -> simulation_failed
reason: notify_operator does not reduce payload power
That is the kind of failure I care about. The rule is well-formed, but it does not solve the operational problem.
The one rule that survived
Only one rule reached human review:
{
"name": "disable_payload_low_battery",
"condition": {
"field": "battery_soc",
"operator": "<",
"value": 22
},
"action": "disable_payload",
"requires_human_go": true
}

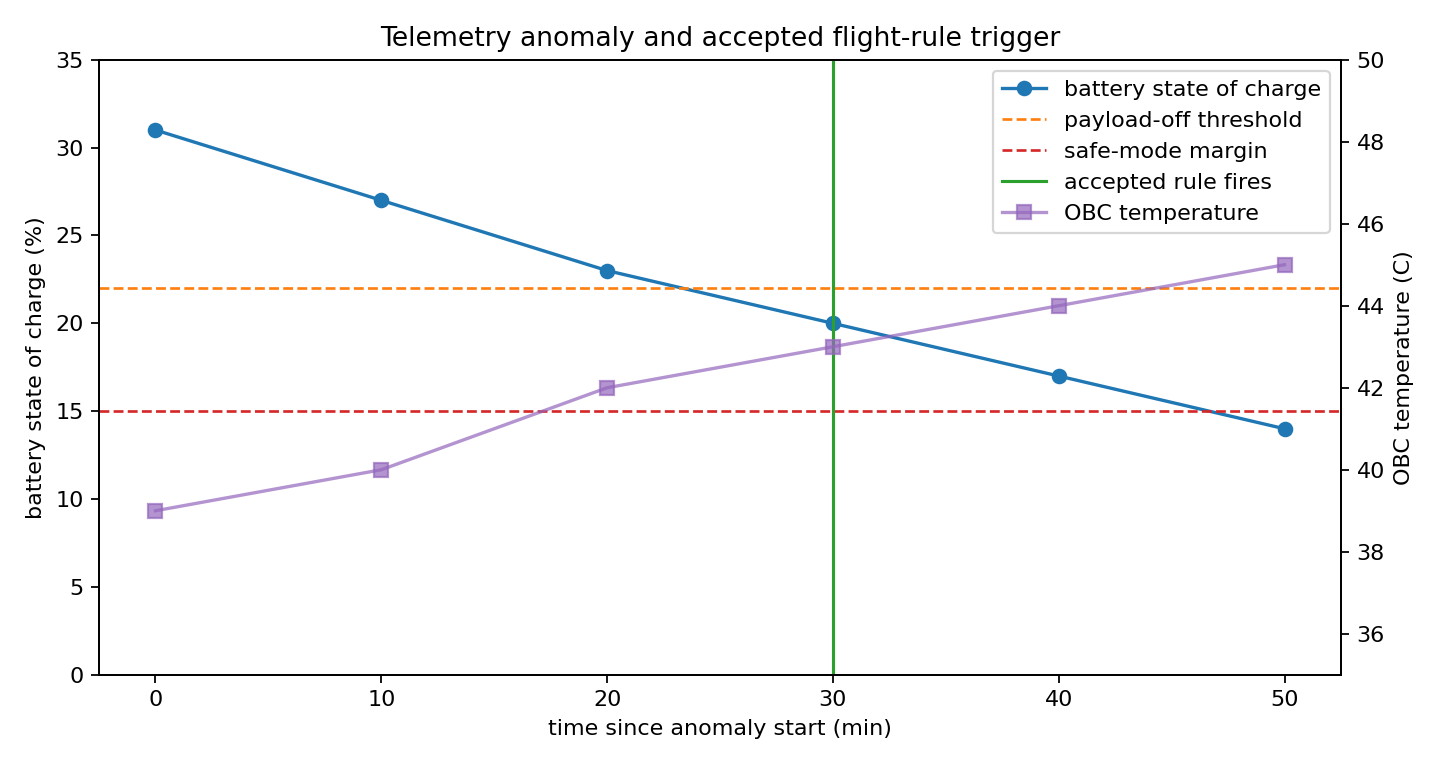

It fires at t = 30 min, when battery state of charge has dropped to 20%. That is after crossing the 22% payload-off threshold but before the 15% safe-mode margin.
The reduced output from the run was:
{
"rules_tested": 4,
"schema_passed": 2,
"simulation_passed": 1,
"ready_for_human_review": [
"disable_payload_low_battery"
],
"rejected": [
"notify_operator_low_battery",
"turn_off_payload_low_battery",
"disable_payload_without_go"
],
"accepted_fire_minute": 30
}
This is the outcome I wanted: the system rejected one invalid action, one missing authorization gate, and one valid-but-ineffective rule. It kept one rule as a proposal for human review.
Draft is not active
I used a small state machine to keep authority explicit:
VALID_STATES = {
"draft": {"schema_valid", "rejected"},
"schema_valid": {"simulation_passed", "simulation_failed", "rejected"},
"simulation_passed": {"ready_for_human_review"},
"simulation_failed": {"rejected"},
"ready_for_human_review": {"approved", "rejected"},
}
That last state matters. ready_for_human_review is not approved. A model-drafted rule can pass schema validation and simulation and still remain inactive.
For spacecraft, UAVs, and ground stations, this is the boundary I would keep:
LLM drafts
schema validates
simulator tests
operator reviews
configuration control publishes
flight software executes
The LLM is useful at turning messy context into a structured proposal. The validator and simulator are useful because they are boring and strict. The operator keeps authority.
What this is not
This is not a flight-ready rule engine. It is not formal verification, and it is not a replacement for subsystem ownership, operations review, or configuration control.
It is a small test of the interface I would want around an LLM. The model can propose. The system can reject. Nothing becomes operational until a human process says so.
Why this matters
LLMs are good at turning messy operational context into structured language. That is valuable in space systems, UAVs, labs, and ground stations. The mistake is letting that fluency blur the line between proposal and permission.
The useful part of this experiment was not that one rule survived. It was that the harness rejected three other rules for specific, auditable reasons. That is the pattern I would trust: not an LLM writing flight rules, but an LLM drafting candidates inside a system that can say no.
